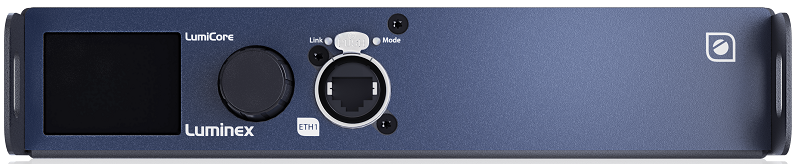

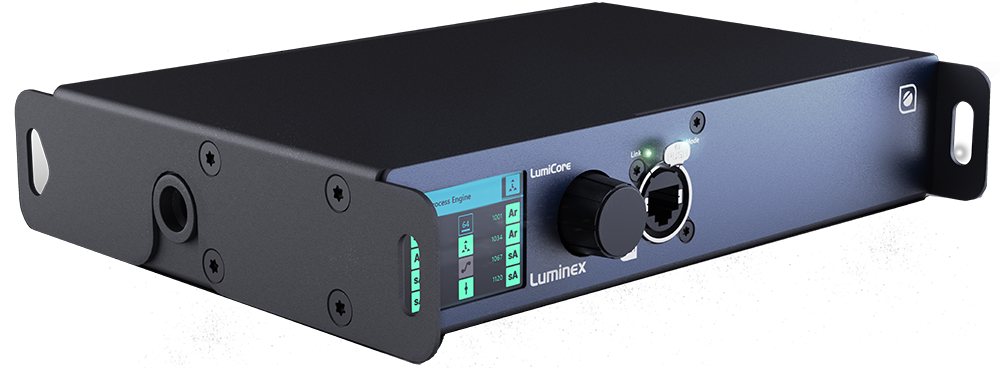

LumiCore

전화문의 (라이브랩 : 070-4699-5739)

https://www.luminex.be/wp-content/uploads/2020/05/WEB_v1.0-20200508_LumiCore_EU-EN.pdf





"최고 64개의 프로세스 엔진"

















































강한 엔진



LumiCore는 64개, 32개 또는 16개의 엔진으로 제공되는 LumiCore를 사용하면 최대 64개의 입력 소스를 병합하여 새로 정의된 64개의 유니버스를 라우팅 할 수 있습니다. 따라서 LumiCore는 페스티발, 극장 또는 TV 스튜디오에서 제어 설정을 분리하는데 이상적인 솔루션입니다.



기술이 완전한 네트워크 솔루션 (Art-Net, sACN을 픽스처에 직접 연결)으로 진화함에 따라, LumiCore는 LumiNode의 모든 유연성을 제공하면서도 네트워크에서 직접 최대 256개의 입력 유니버스를 병합하여 최대 128개의 출력 유니버스로 라우팅 합니다. 이 모든 것이 매우 짧은 지연 시간으로 이루어집니다.







HTP. LTP. BACKUP, SWITCH, CROSSFADE 또는 커스터 모드

이 엔진 기술을 통해 채널별로도 다양한 트리거를 할당할 수 있는 HTP. LTP. BACKUP, SWITCH, CROSSFADE 또는 커스터 모드로 병합할 수 있습니다.

대규모 픽셀 맵핑 애플리케이션에서 LumiCore는 다양한 제어 소스를 새로운 네트워크 스트림으로 병합하는 데 적합합니다.



TV 스튜디오에서 LumiCore를 사용하면  IT 환경에서 콘트롤 데스크를 사용할 수 있습니다.

분할 인터페이스가 가능한 LumiCore는 조명 장비 LAN을 IT 인프라로부터 격리할 수 있습니다. 이를 통해 IT 부서에서 콘트롤 인프라를 모니터링하고 동시에 이러한 리소스를 여러 스튜디오에 공유하면서 쇼 저장을 IT 측에 집중시킬 수 있습니다. LumiCore는 실제 다리 역할을 하며 완전히 중복 배치될 수 있습니다.









전단지 다운로드



스펙시트 다운로드










사양





연결성

  • DMX/RDM connectivity: None
  • Ethernet connectivity: 2x shielded Neutrik Ethercon connector
  • Contact closure: Yes
  • Power connectivity:
    • 1x Neutrik powerCON TRUE1
    • Ethernet (PoE)





DMX features

  • DMX protocols: NA
  • DMX port direction: NA
  • DMX port isolation: NA
  • DMX timing: NA





Network features

  • Ethernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX), KiNET v1,v2
  • Ethernet port speed: 1Gbps
  • Port sensing: Auto-negociation, MDI / MDIX
  • Split management interface: Yes
  • Groups (VLAN) support: Yes





Key features

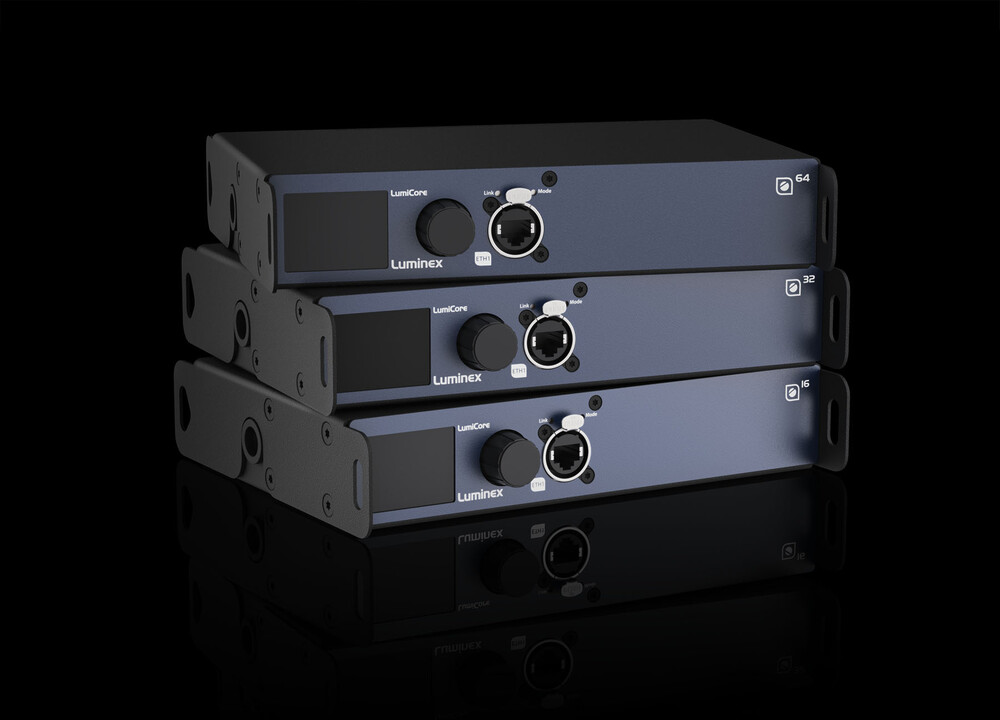

  • Process engines: 64 (LumiCore 64), 32 (LumiCore 32), 16 (LumiCore16)
  • Merging engine:
    • HTP
    • LTP
    • Backup
    • Switch
    • X-Fade
    • Custom
  • Softpatch: Yes
  • Master/Limit:
    • Proportional
    • Limit
  • Trigger system: Yes
  • ReRoute: Yes
  • Profile manager: Yes
  • Snapshot: Yes
  • DMX Redundancy: NA
  • Monitoring software: LumiNet Monitor V2 (free)

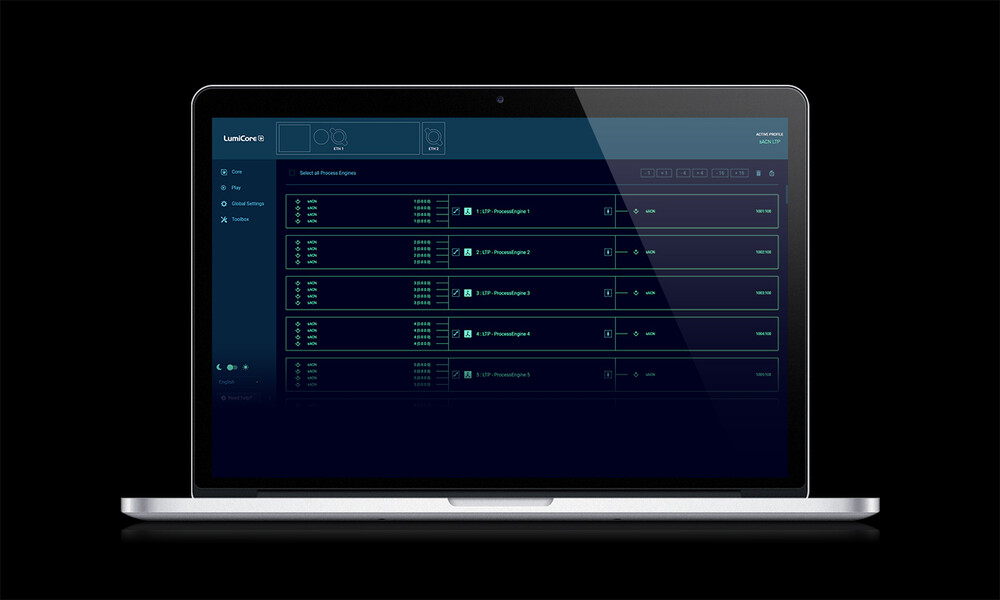

  • Configuration: Through the built-in web server or with the front end display menu





Status

  • Display and jog: Yes
  • Status LEDs: Ethernet Port link/activity LED and mode LED





Power

  • Power input:
    • 100-240VAC 50-60Hz
    • PoE (802.3af)
  • Power consumption: Maximum 13W
  • Power redundancy: Yes





Environmental

  • Operating temperature: 0 to +50°C
  • Storage temperature: -10 to +70°C
  • Humidity (non condensing): 5 to 95% RH





Physical

  • Enclosure: Robust metal housing
  • Mounting: Rack, Truss
  • Dimensions (W x D x H): 220 x 175 x 44 mm (1/2 19" x 8,7" x 1,7")
  • Weight: 2,4 kg
  • Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")





Approvals

  • Electromagnetic emissions and immunity:
    • EN55032 class A
    • EN55035
    • EN61000-3-2
    • EN61000-3-3
    • EN61000-4-2
    • EN61000-4-4
    • EN61000-4-5
    • EN61000-4-6
    • EN61000-4-8
    • EN61000-4-11
    • FCC Part 15 CFR 47 class A
    • ICES-003 Issue 6
  • Safety:
    • IEC 62368-1
    • EN 62368-1
    • UL 62368-1
    • CAN/CSA-C22.2 No. 62368-1
    • CE
  • Certificates:
    • cSGSus Mark
    • CE
    • CB certificate
  • Green:
    • RoHS
    • REACH





제품 코드

  • Product codes:
    • LU 01 00074-64 LumiCore 64
    • LU 01 00074-32 LumiCore 32
    • LU 01 00074-16 LumiCore 16
